Magnetic Stirrer
TS-T/TH
Magnetic stirrer
Product parameter

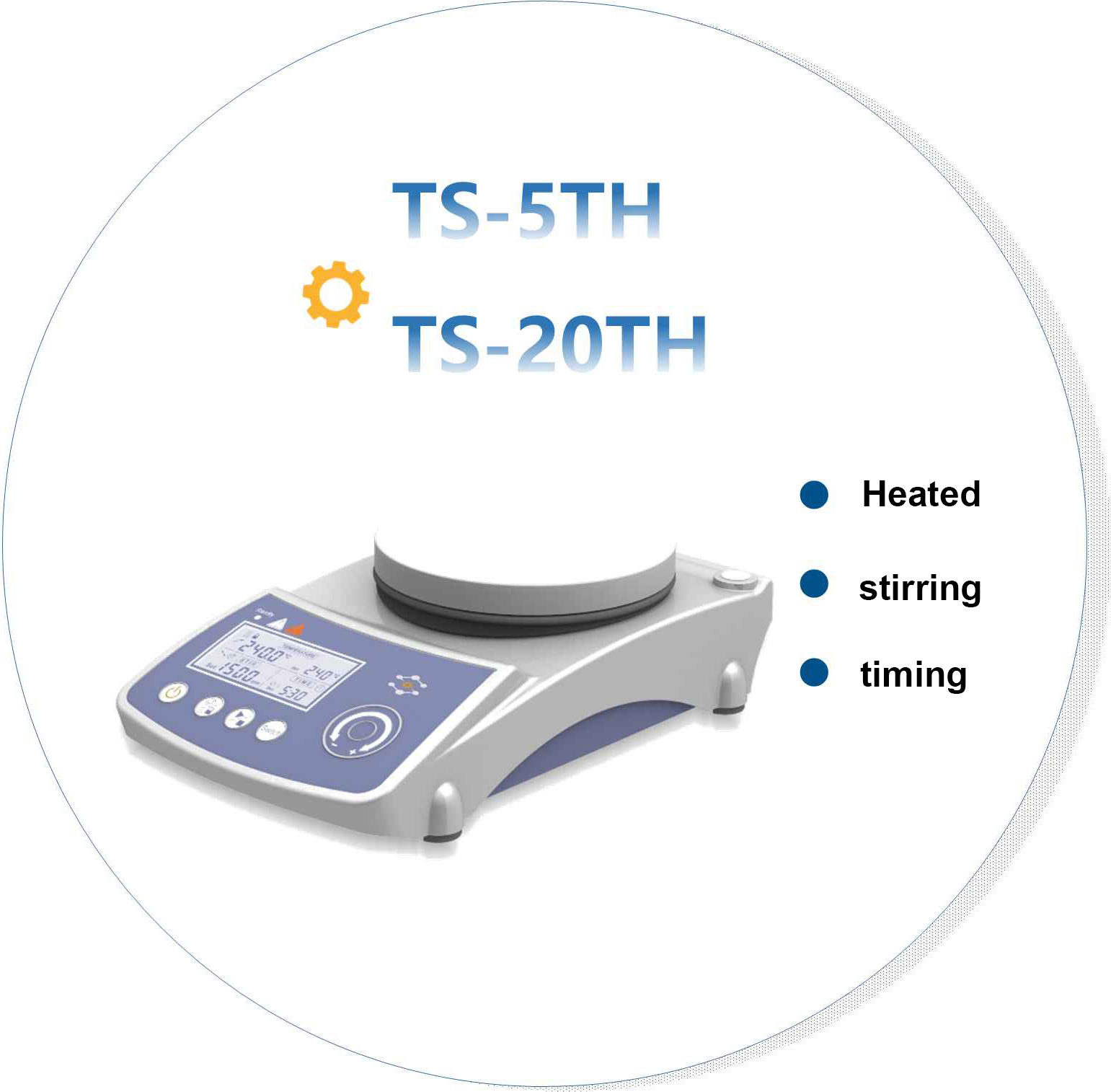

| model | TS-5TH | TS-20TH |
|---|---|---|
| Maximum stirring volume [L, H2O] | 5 | 20 |
| Output power [w] | 3 | 5 |
| Revolution setting range 【rpm】 | 100~1600 | 100~1800 |
| Stirring mode | Batch stirring: 45s | Forward/Inversion stirring: 45s |
| Heating output power | 300W | 600W |
| Heat up the rate of warming [H2O] | 3.5℃/min | 6.5℃/min |
| Temperature setting range | rt~260℃ | rt~340℃ |
| Sensor temperature setting range | rt~160℃ | rt~320℃ |
| Temperature control accuracy | ±5℃ | |
|
Temperature control accuracy by external temperature sensor
(Pt1000s) |
±1℃ | |
| Timing range [H] | 0~9 | |
| Display mode | liquid crystal | |
| Working plate material | Aluminum alloy ceramic coating | |
| Working plate size | Diameter135 | |
| Overall dimension【mm】 | 175×270×76 | |
| Weight【kg】 | 1.8 | 2.3 |
Magnetic stirrer
| Type | TS-20TH |
|---|---|
| Maximum stir【L,H2O】 | 20 |
| Power【W】 | 5 |
| Speed setting range【rpm】 | 100~1800 |
| Mixing method | Forward/Inversion stirring: 45s |
| Timing range【h】 | 0~9 |
| Display mode | liquid crystal |
| Length of stirrer【mm】 | 20~80 |
| Working plate material | Aluminum alloy ceramic coating |
| Working plate size | Diameter 135 |
| Overall dimension【mm】 | 175×270×76 |
| Weight【kg】 | 2.0 |
