Pilot-scale photoreaction
solutions

Plate microchannels Cartridge microchannels

Optical microfluidic equipment FP

【Optical microfluidic equipment FP-I】
FP-I
Microchannels: glass, quartz
【Optical microfluidic equipment FP-II】
FP-II
Microchannels: glass, quartz, PFA tubes
【Optical microfluidic equipment FP-III】
FP-III
Microchannels: PFA tubes
【Optical microfluidic equipment FP-IV】
FP-IV
Microchannels: glass, quartz, PFAA tubes
【Optical microfluidic equipment FP】
Chlorination reactions
Bromination reaction
Oxidation reaction
Sulfonation reaction
coupling reaction
Cycloaddition reaction
Isomerization reaction
polymerization
Nitrosation reaction
Degradation reactions
Heavy metal recovery
Heavy atomization reactions

Select channels

【Optical microfluidic equipment FP】
Quartz
Glass
Polymer

Note: means vailable

Type FP-Ⅰ，II，III，IV

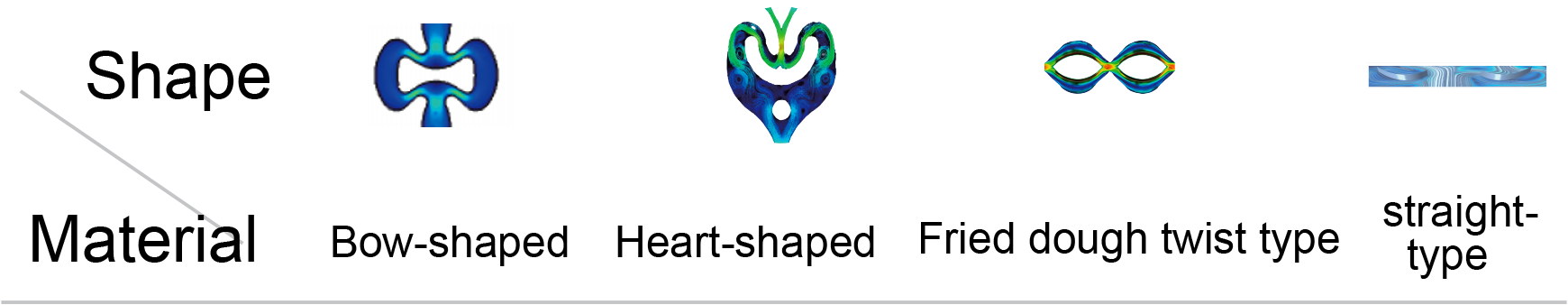

Channel bow type, heart type, fried dough twist type, straight type optional
Illuminant LED light source
Light wave 250-950nm optional
Power 0~2/10/20kW adjustable (customized)
Capacity 5/10/20/50/100L，1t，2t (customized) (customized)
Temperature range RT/-20~80℃
Pressure range 0~3atm

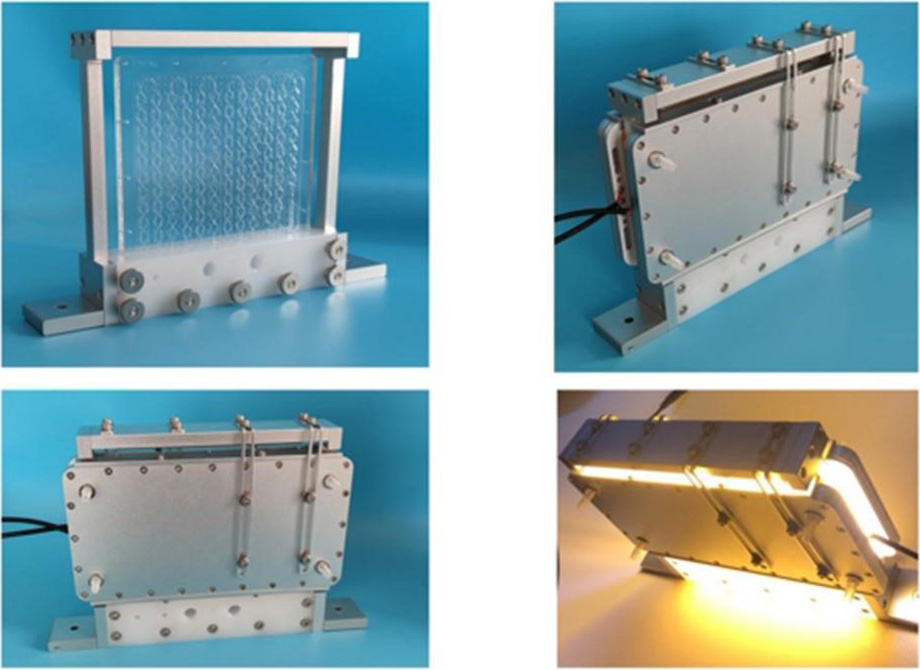

Photomicrofluidic reactor FP-I Plate microchannels

Photomicrofluidic reactor FP-I】

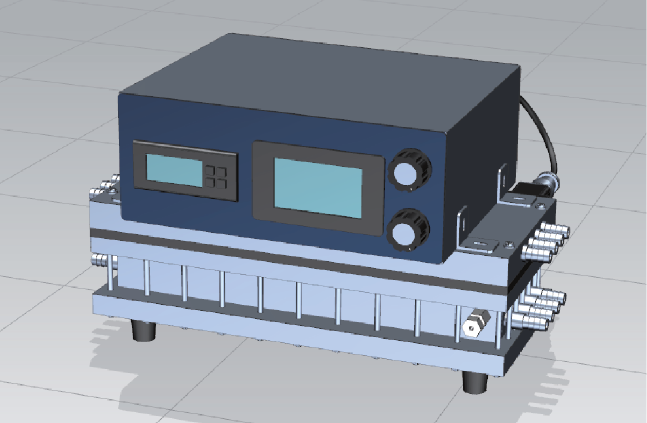

FP1 Single Module（10mL）
Typel FP-I
LED 250-950nm optional
Light-transmitting materials Quartz, borosilicate glass
Channel bow, heart type, fried dough twist type
act material 6L stainless steel, PTFE
Liquid volume 10mL
Temperature range -20~80℃
Size 270*100*70mm
  • Bowknot/heart/fried dough twist
  • Free combination of channel modules
  • Quartz and glass light transmission optional
Photomicrofluidic reactor FP-I】

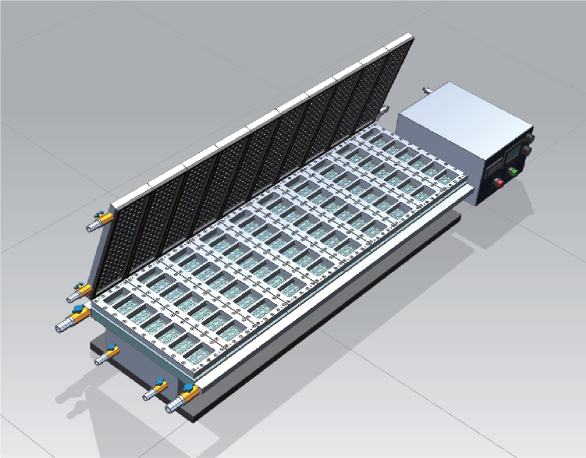

FP1 Ten combinations （1L）
【Photomicrofluidic reactor FP-I】
【Photomicrofluidic reactor FP-I】
【Photomicrofluidic reactor FP-I】
【Photomicrofluidic reactor FP-I】

Photomicrofluidic reactor FP-II Plate microchannels

【Photomicrofluidic reactor FP-II】
Typel FP-II
LED 360-950nm optional
Light-transmitting materials PFA、Quartz, borosilicate glass
Transparent materials 316L stainless steel, PTFE, PFA
Liquid volume 100mL, customizable
Temperature range -20~80℃
Size 500*160*600mm
【Photomicrofluidic reactor FP-II】
PFA pipeline
【Photomicrofluidic reactor FP-II】
fried dough twist channels
【Photomicrofluidic reactor FP-II】
Heart type channels
【Photomicrofluidic reactor FP-II】

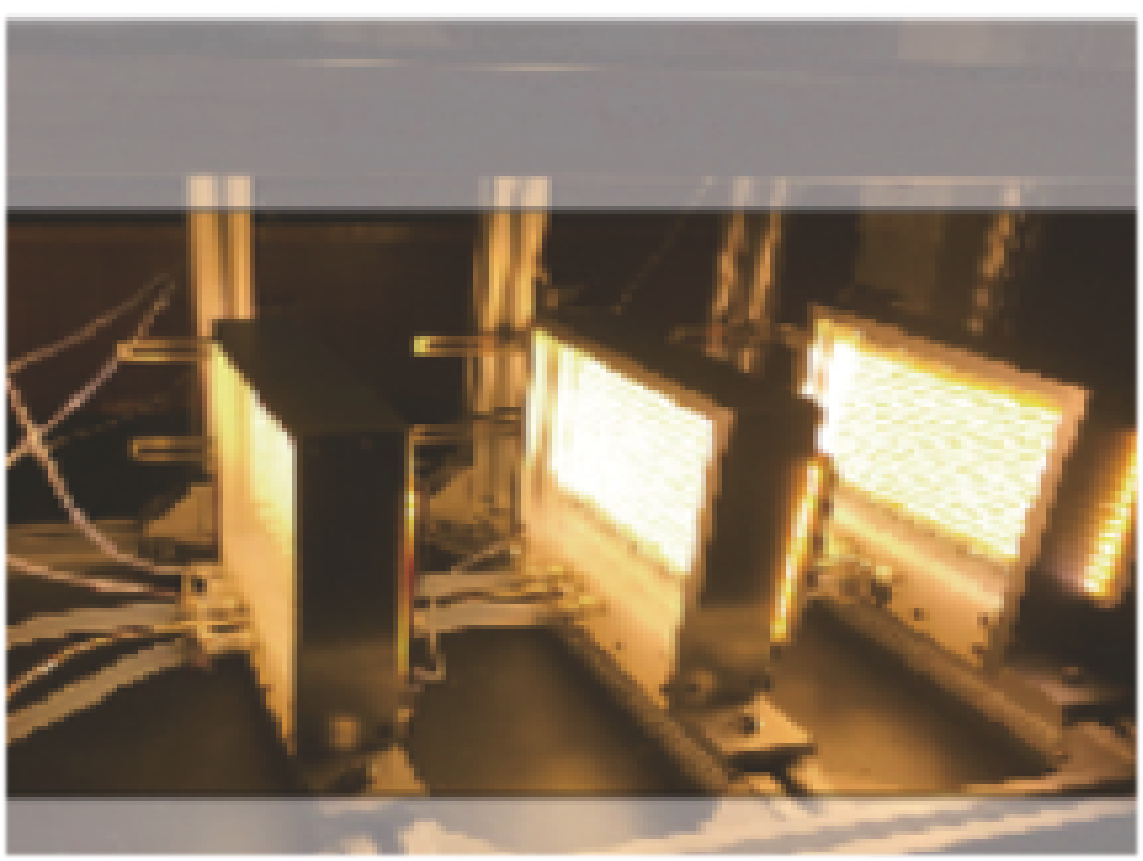

  • LED light array
  • Electrical power: 1200W
  • Luminous power MAX=270=mW/cm²
Internal LED lamp beads array lighting test

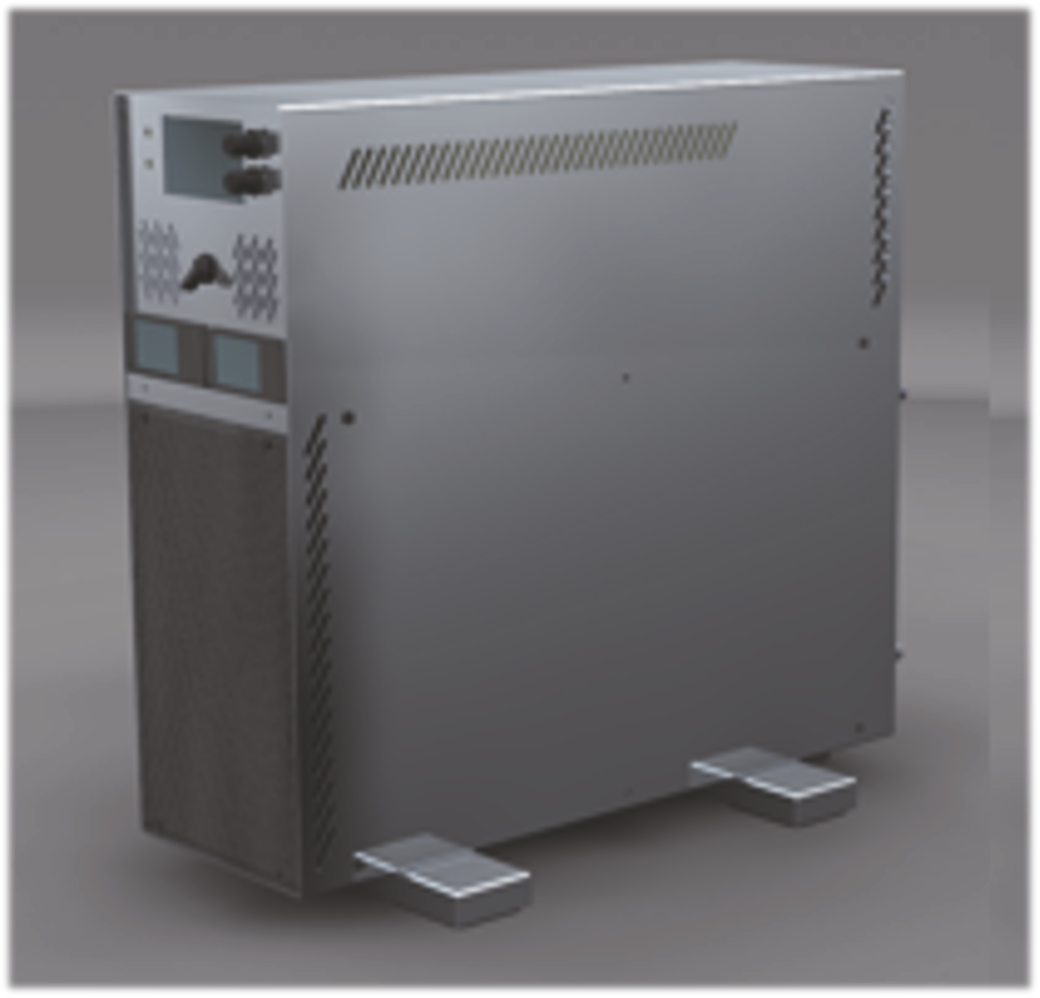

Photomicrofluidic reactor FP-III Cartridge microchannels

【Photomicrofluidic reactor FP-III】
Type FP-III
LED 360-950nm optional
Light-transmitting materials PFA、FEP、PTFE
Contact material PTFE
Liquid volume 1000ml
Temperature range -20~80℃
Size 500*160*600mm
  • 12000W LED light array
  • Peak optical power≥ 360mW/cm²
  • ≥1000mL Liquid volume
  • Daily output of 5~30kg products
【Photomicrofluidic reactor FP-III】

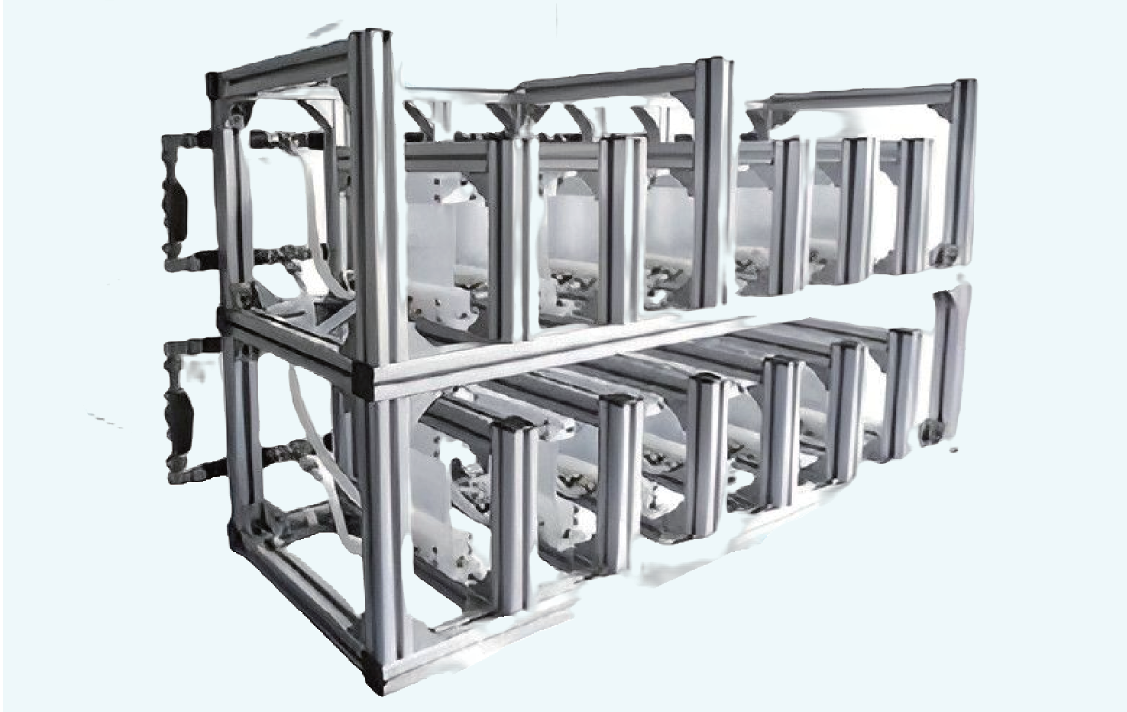

Photomicrofluidic reactor FP-IV Plate microchannels

  • safe energy-saving
  • Replaceable illumination
  • Large processing volume

【Photomicrofluidic reactor FP-IV】

【Photomicrofluidic reactor FP-IV】

Type FP-IV
LED 250-950nm
Light-transmitting materials Schoot BF33 high borosilicate glass
Operating temperature -20~200℃
Liquid volume 100mL~5L
Temperature range -20℃~200℃
Pressure ranges Microchannel pressure: 0~20bar
Control temperature layer pressure: 0~5bar
Size 500*160*600
Sealing material Material：PFA (clamp) + PA66 (insulation)
O-ring材质：FFKM+Viton75
【Photomicrofluidic reactor FP-IV】

According to the specific production process, 3S's chemical engineers and equipment engineers work together to provide customized services, welcome to consult!
