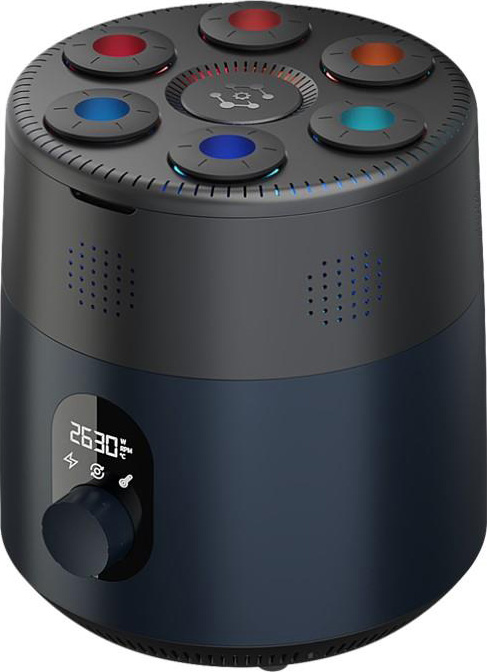

Parallel photoreactor
Precise subdivision of natural light sources to make industrial production safer AL1
| Type | AL1 | AL2 | AL3 |
| Reactive site | 6 group | ||
| Specification |
Nuclear magnetic tube，5/10/20mL Reaction bottle 25/50/100mL Reaction tube Other sizes can be customized |
||
| Illuminant | 365~750 nm | 365~950 nm | 365~950 nm |
| Single hole power | 0~12W | 0~12W |
High power version coming soon |
| Light intensity adjustment | Unified adjustment | Independent adjustment | Independent adjustment |
| Working temperature | Intelligent air cooling | ||
| Stir (built-in) | 300~1500 RPM (built-in) | ||
| Work voltage | 100~240 VAC 50/60Hz | ||
| Size | 210*230*280 mm | ||
| Weight | 3.1 kg | ||
Excellent illumination
Luminous flux up to 2000000LUX，Light energy 1200 mW/cm ²
*Note: Effect of School of Chemistry and Molecular Engineering, East China Normal University
The light intensity reaches the high value ,
make impossible becomes possible.
The reaction time is shortened from 7 days to 1 day*
Illumination 60+
365~950 nm, Match as needed
Narrow light wave of monochromatic LED, subdivided by 5nm
Lightweight, reliable and minimalist design
Easy to move and carry
- 3.1 kg
- Mini
- Easy
Excellent illumination
Power 0~12W free setting
Light energy up to 1.2W/cm ²
Temperature control
Real time monitoring of reaction temperature
Temperature control
Multi effect integration
Stir ，illumination and temperature control
Multi function integration
Intimate illumination
Light wave from 360 to 950nm
Optional high-quality light source
Intelligence and flexible
Touch+Knob
Easy to control and adjust
Safe and reliable
Protect eyes by blocking illumination
National inspection and certification
