Parallel Photoreactor
Precise liquid cooling temperature control, independent light intensity adjustment AF2
| Type | AF1 | AF2 | AF-lite |

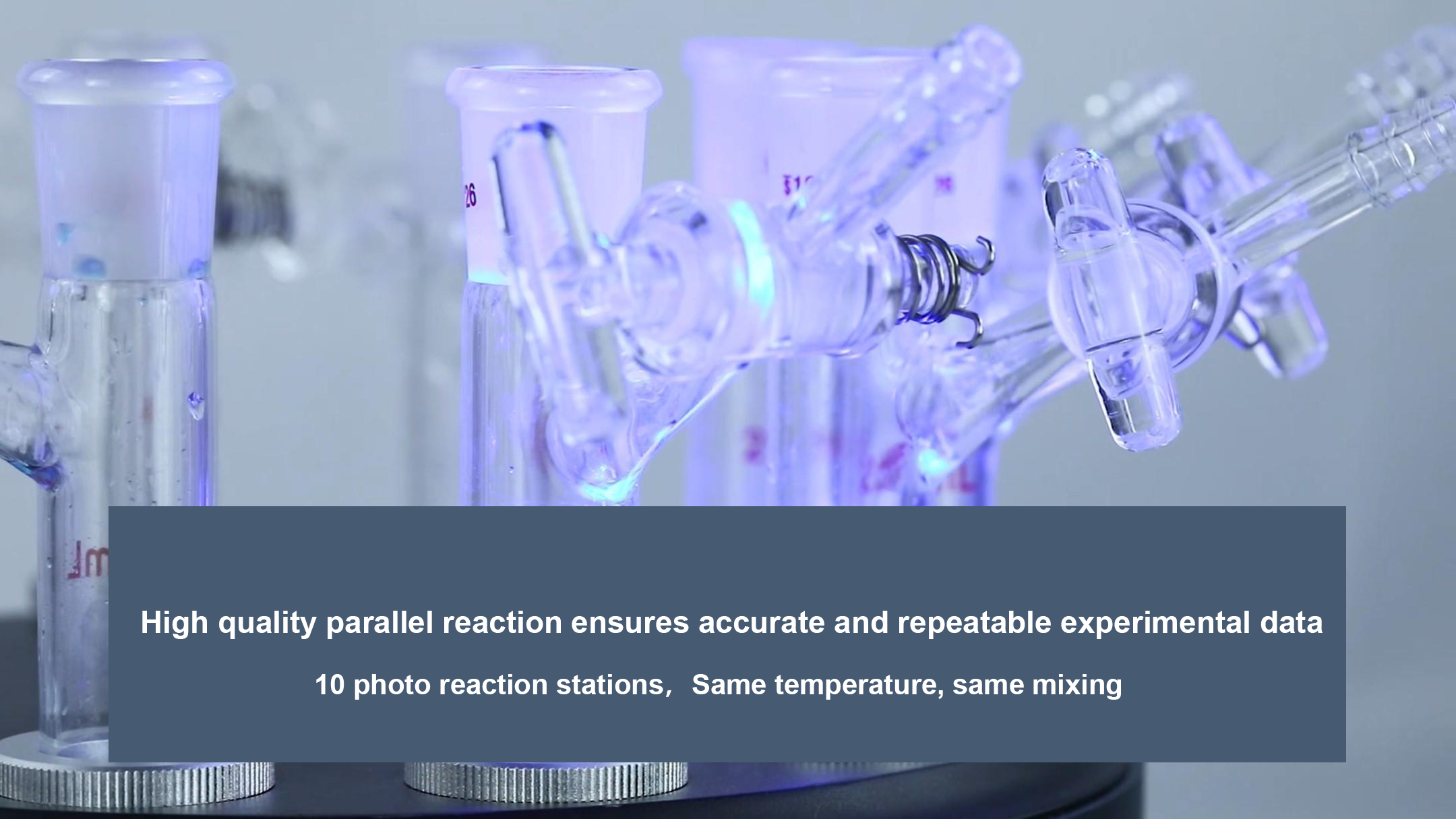

| Reactive site | 10 | 12 | |

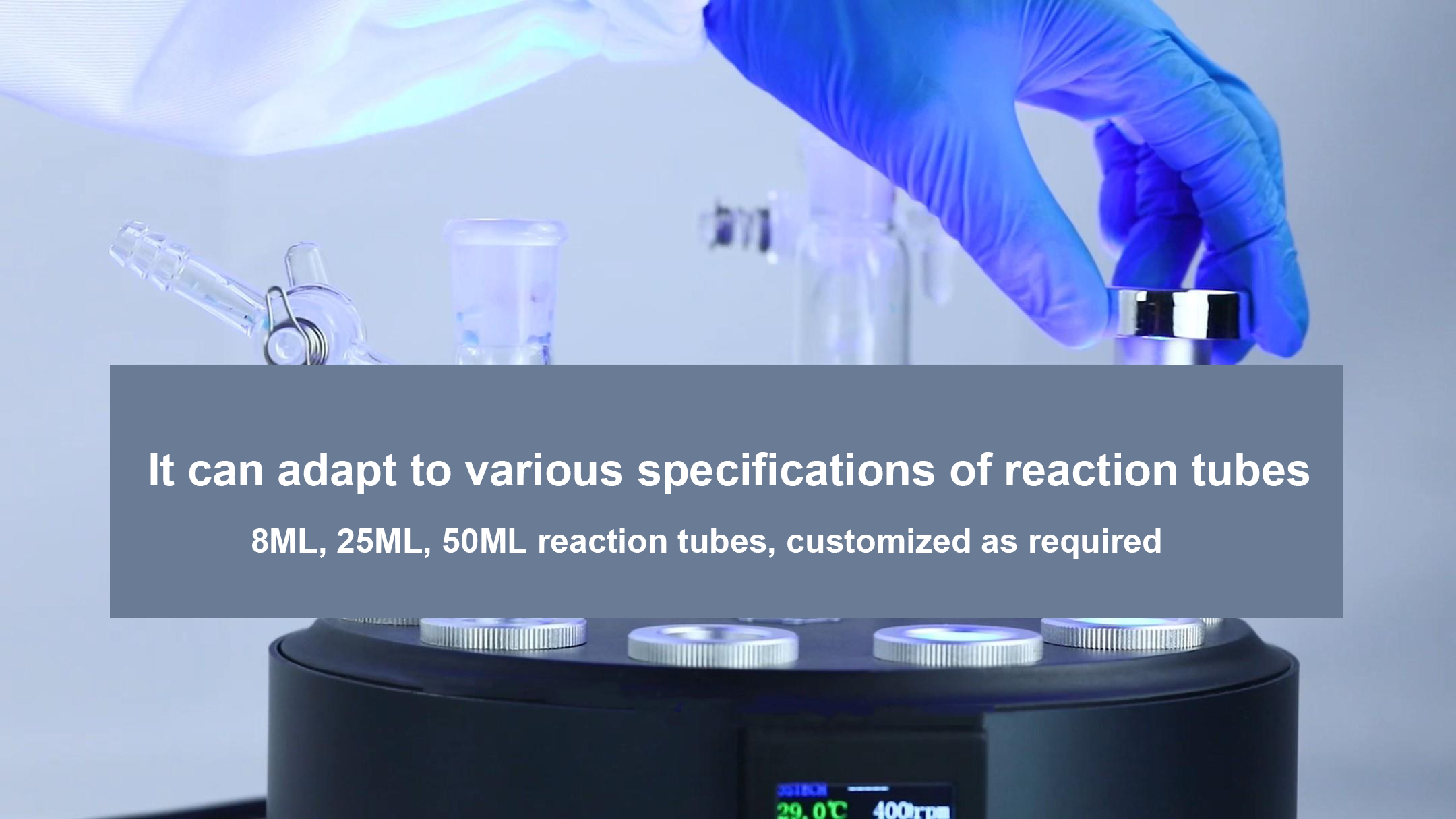

| Specification | 8/10/25/50 mL Reaction tube | 4~25mL Reaction tube | |
| Light wave | 250-975nm，6500K（250~360 need to customize） | ||
| Illumination | Non replaceable | Replaceable | Replaceable |
| Power | 0-12 W | 0~8W | |
| Light intensity adjustment | Independent adjustment | 6 groups of adjustment | |
| Temperature control range | -20~80 (±2) ℃ | -20~rt | |
| Stir (built-in) | 300-2000 RPM | 300-2400 RPM | |
| Work voltage | 100-240 VAC 50/60 Hz | ||
| Size | 230*240*107 mm | ||
| Weight | 6.8kg | 5.8kg | |
Precision manufacturing, beautiful and easy to use
All metal fuselage, chemical corrosion resistant
Built in Stir
Time switch can be set to make the experiment safe
Lightweight, reliable and minimalist design
Easy to move and carry
- 6.8kg
- Mini
- Easy
Excellent illumination
Power 0~12W Free and independent setting
Light energy up to 600 mW/cm ²
Precise temperature control
Precise liquid cooling temperature control
Real time monitoring of reaction temperature
Multiple effects in one
Stir, illumination and temperature control
High temperature, normal temperature, low temperature
Intimate illumination
Light wave from 360 to 950nm
Can customise 250~365 nm
Intelligence and flexible
Simple and convenient operation
Small volume saves experimental space
Safe and reliable
Protect eyes by blocking illumination
National inspection and certification
