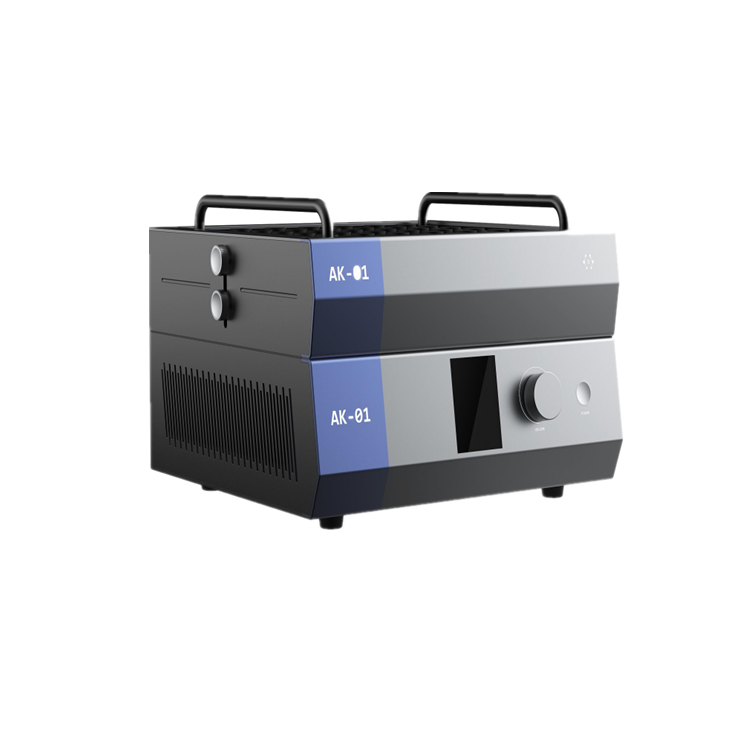

Shanghai 3S Technology Co., Ltd. presents the AK Series Photoreactor - an innovative solution engineered to accelerate photochemical experiments while ensuring precision and reproducibility. Designed for modern laboratories in pharmaceuticals, material science, and green chemistry, our system redefines efficiency in light-driven reactions.

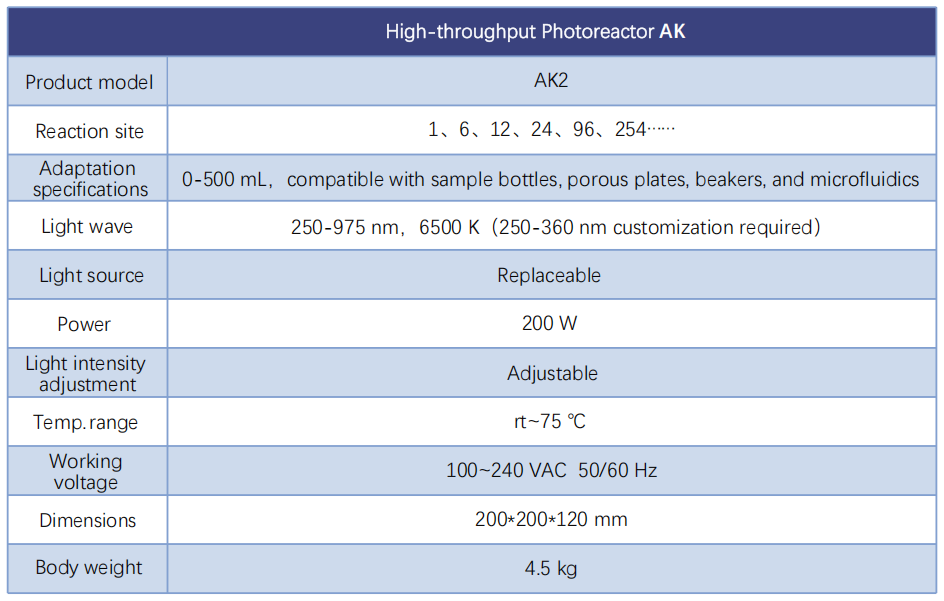

Key Technical Parameters

• High throughput parallel synthesis, compatible with multiple reaction forms.

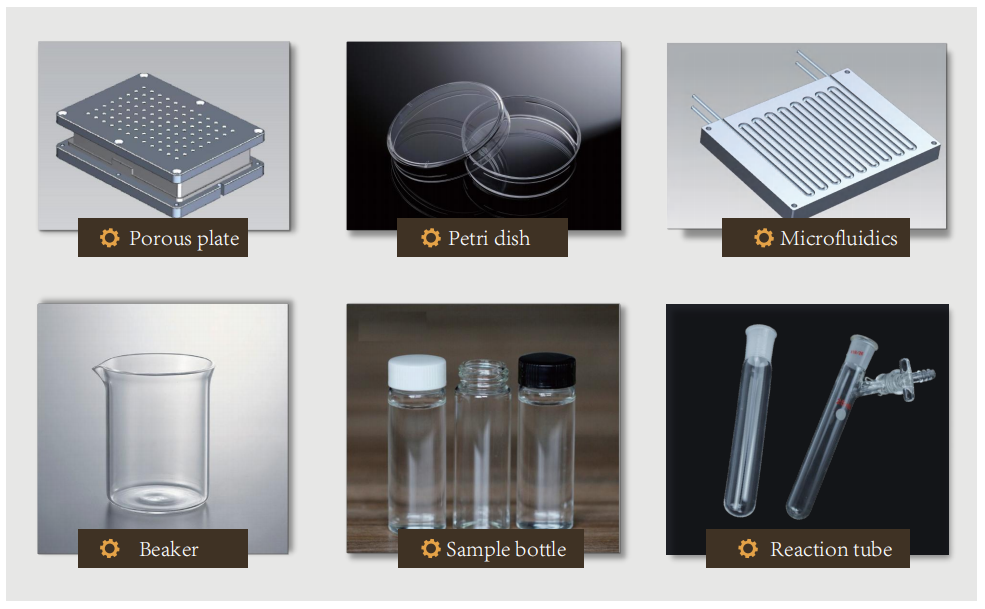

High adaptability: 6, 12, 24, 96, 254, microfluidics;

• Stable parallelism: Unified light source, parallel adjustment;

• Strong temperature control: Optional temperature control function;

• Strong illumination: 200W high-intensity illumination, continuously adjustable.

Application Area

Suitable for batch parallel experiments, effectively improving experimental research

efficiency, widely compatible from chemistry to biology, from batch to flow.

Core Features

1. Multi-Reaction Parallel Processing
   Conduct up to 96 simultaneous reactions with independent parameter control, reducing experimental cycles by 80% compared to conventional systems.

2. Intelligent Spectral Optimization
   Patented wavelength blending technology enables precise spectral matching for diverse photocatalysts (metal complexes, organic dyes, quantum dots).

3. Closed-Loop Temperature Management
   Integrated cooling/heating system maintains thermal stability even under intense irradiation, crucial for sensitive organometallic reactions.

4. Experimental Automation Suite

• Pre-programmed reaction protocols

• Real-time optical density monitoring

• Automated data logging (CSV/Excel compatible)

Competitive Advantages
✔ Energy Efficiency: 40% lower power consumption vs. conventional mercury lamp systems
✔ Scalable Design: Modular expansion from benchtop units to production-scale arrays
✔ Material Safety: Corrosion-resistant Hastelloy reaction chambers
✔ User-Centric Software: Compatible with LIMS systems

Application Scenarios

• Photocatalyst screening & optimization

• API photodegradation studies

• OLED material development

• Solar fuel research (water splitting, CO₂ reduction)

Why Choose 3S-Tech AK Series?
With 15+ years of photochemical expertise, Shanghai 3S Technology delivers:
🔬 Academic-Grade Precision: ±2% light uniformity across all reaction wells
⚙️ Industrial Durability: 50,000+ hour LED lifespan with <5% intensity decay
